- Place of Origin: jiangsu
- Brand Name: Ya and mechanical
- Model Number: YK-160 swing particle machine

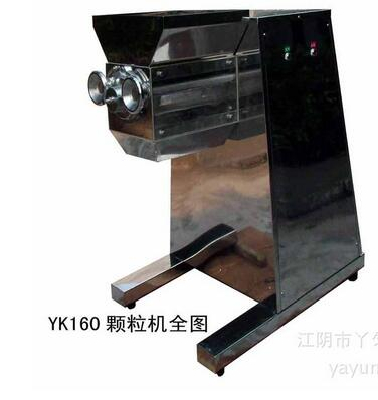

YK-160 swing particle machine
Granulated powder was oscillating granulator may be mixed and to be crushed dry bulk material into the desired granules. Swing Granules used in pharmaceutical, chemical plants, food plants, research institutes, laboratories, hospitals, health care products factory production. Swing Granules whole machine made of stainless steel, meet the GMP standard.
Swing Granules mainly from the hopper, roller, screen and mechanical drive and other components. When it works, mechanical drive system to drive rotation of the drum, there are seven trapezoidal cross-sectional shape of the "blade" on the drum, the drum beneath a screen with a round tube clip it with sieve. Material from the hopper into a group to join, since the drum forward and reverse rotation of the blade to produce wet material crushing and shearing action. The material is squeezed through the sieve into tablets.
Swing particle machine running, add food and elastic mesh position directly affects the quality of prepared particles. Hopper feeding quantity many and relatively loose mesh folder, since the drum rotates to increase the number of soft material through the screen, and can make the hard particles.
General particle diameter of the particles swing mechanism was evenly distributed in favor of the wet granulation uniform drying. Its main feature is a rotating drum rotation speed can be adjusted, the screen easy handling, but also appropriate to adjust its tension. All mechanical transmission seal in the body, together with the adjustment system, improve the parts of life. However, due to the granulation process is initiated by direct compression of the drum sieve particles from the material on the screen pressing force of friction are larger. Easy to produce metal contamination prescription when using metal mesh, and nylon mesh easily damaged due to the need to be changed frequently, in use should take note.
- Place of Origin: jiangsu
- Brand Name: Ya and mechanical
- Model Number: YK-160 swing particle machine
MODEL | Yield (Kg / h) | Power (kw) | Drum rotational speed (r / min) | Wobbling amplitude (0) | Roller diameter (mm) | Volume (cm) | Weight (kg) |
YK-60 | 20-30 | 0.25 | 46 | 360 | 60 | 45x45x55 | 70 |
YK-100 | 30-200 | 1.1 | 55 | 360 | 100 | 70x40x105 | 180 |
YK-160 | 60-300 | 2.2 | 65 | 360 | 160 | 100x80x130 | 280 |
