- Place of Origin: jiangsu
- Brand Name: Ya and mechanical
- Model Number: YYH-1000

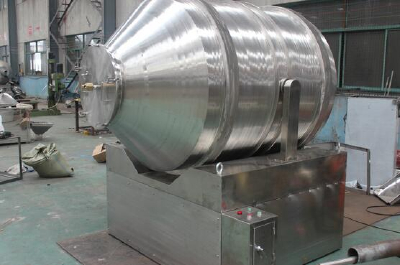

Dimensional Mixer Description
Also known as one-dimensional motion mixer roll movement mixer, equipped with mixing material in the cylinder motor driven rotary motion testimony average rate, due to the cylinder wall welding a number of special "copy board" promote the material in the copy board mainly as three-dimensional motion, allow participants mixing different components (material can move relative to the maximum extent possible, so as to achieve the purpose of mixing.
This product is a newly developed simple, efficient powder mixer, simple structure, easy to clean, is in line with "GMP" powder mixing equipment.
Two one-dimensional mixer uses and characteristics
1, the device is widely used in medicine, food, chemicals, feed, pesticide industry in powder, pellet mixer. In operation, the cylinder charge to do about the central axis rotary motion, referred to as a one-dimensional mixer. Since the cylinder axis of the body without any stirring, no worries seal contaminated materials, in line with "GMP", "FAD" specifications.
2, the discharge device with a closed discharge means discharging realized no dust. Spout with a spiral plate, so that the material can be substantially out to do, the device is equipped with vacuum feeding machine interface can be equipped with vacuum on the feeder, to achieve automatic feeding.

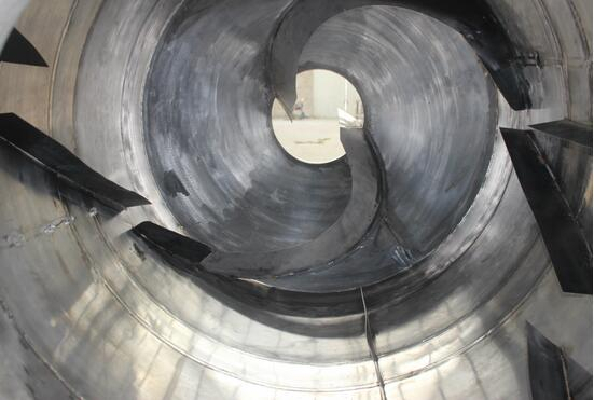

3, cylinder wall mirror polished, can reduce the flow resistance of the material. Welding cylinder wall scraper, cleverly designed to force the materials for multi-directional movement, mixed thoroughly, improve the mix of materials.
4, transmission flexible operation, the use of frequency control, forward and reverse rotation of the cylinder can be adjusted positioning.
5, the overall structure of the device is simple, easy to clean, easy maintenance.
6. operation, loading cylinder about the central axis of the rotary motion to do (referred to as "one-dimensional movement"), while the barrel material for three-dimensional motion, blending accuracy so that the material can be two-dimensional, three-dimensional motion mixer comparable.
- Place of Origin: jiangsu
- Brand Name: Ya and mechanical
- Model Number: YYH-1000
MODEL | Cylinder volume (L) | The maximum loading volume (L) | Maximum loading quantity (Kg / batch) | The rotational speed (r /min) | the rotational speed (day / people | Dimensions A × B × C × D (mm) | Total weight (Kg) |
YYH-50 | 50 | 25 | 13 | 0-18 | 0.55 | 920×440×540×350 | 250 |
YYH-150 | 150 | 75 | 37 | 0-16 | 0.75 | 1140×610×900×445 | 320 |
YYH-300 | 300 | 150 | 75 | 0-14 | 1.1 | 1340×760×990×520 | 410 |
YYH-600 | 600 | 300 | 150 | 0-13 | 1.5 | 1615×960×1100×630 | 490 |
YYH-800 | 800 | 400 | 200 | 0-12 | 2.2 | 1730×1070×1200×700 | 560 |
YYH-1000 | 1000 | 500 | 250 | 0-12 | 2.2 | 1900×1120×1300×710 | 740 |
YYH-1500 | 1500 | 750 | 375 | 0-12 | 3 | 2050×1300×1480×830 | 850 |
YYH-2000 | 2000 | 1000 | 500 | 0-10 | 4 | 2280×1420×1620×910 | 1050 |
YYH-3000 | 3000 | 1500 | 750 | 0-10 | 5.5 | 2505×1620×1830×1020 | 1380 |
YYH-4000 | 4000 | 2000 | 1000 | 0-8 | 5.5 | 3000×1800×2200×1300 | 1650 |
YYH-6000 | 6000 | 3000 | 1500 | 0-6 | 7.5 | 3400×2200×2500×1450 | 2300 |
YYH-8000 | 8000 | 4000 | 2000 | 0-6 | 11 | 3677×2300×2850×1630 | 3500 |
YYH-10000 | 10000 | 5000 | 2500 | 0-6 | 11 | 3800×2500×2950×1680 | 3800 |
YYH-12000 | 12000 | 6000 | 3000 | 0-6 | 15 | 4600×2700×3050×1700 | 4500 |
YYH-15000 | 15000 | 7500 | 3750 | 0-5 | 18.5 | 4730×2900×3100×1725 | 6000 |
YYH-20000 | 20000 | 10000 | 5000 | 0-5 | 22 | 6000×3200×3500×1920 | 8000 |
